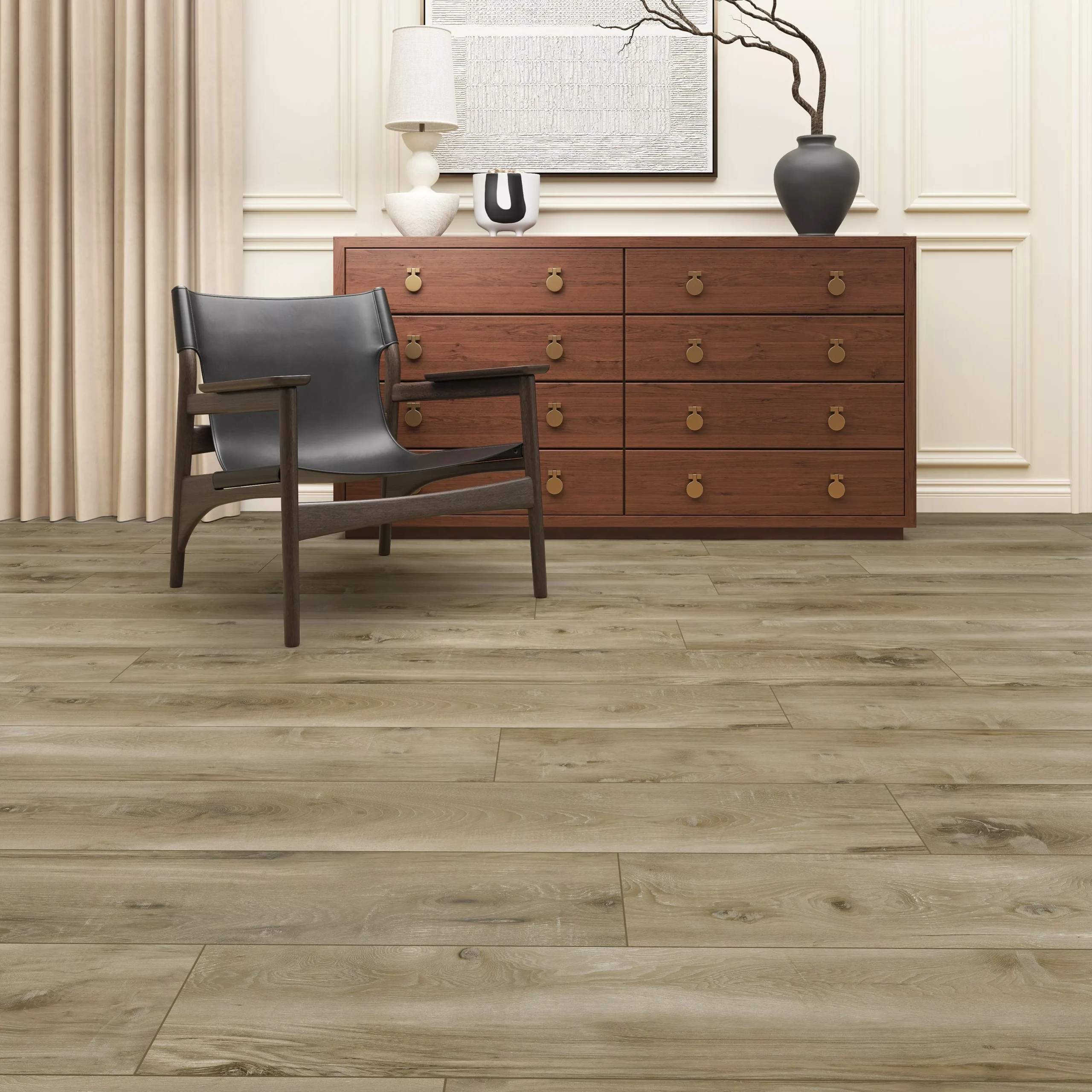

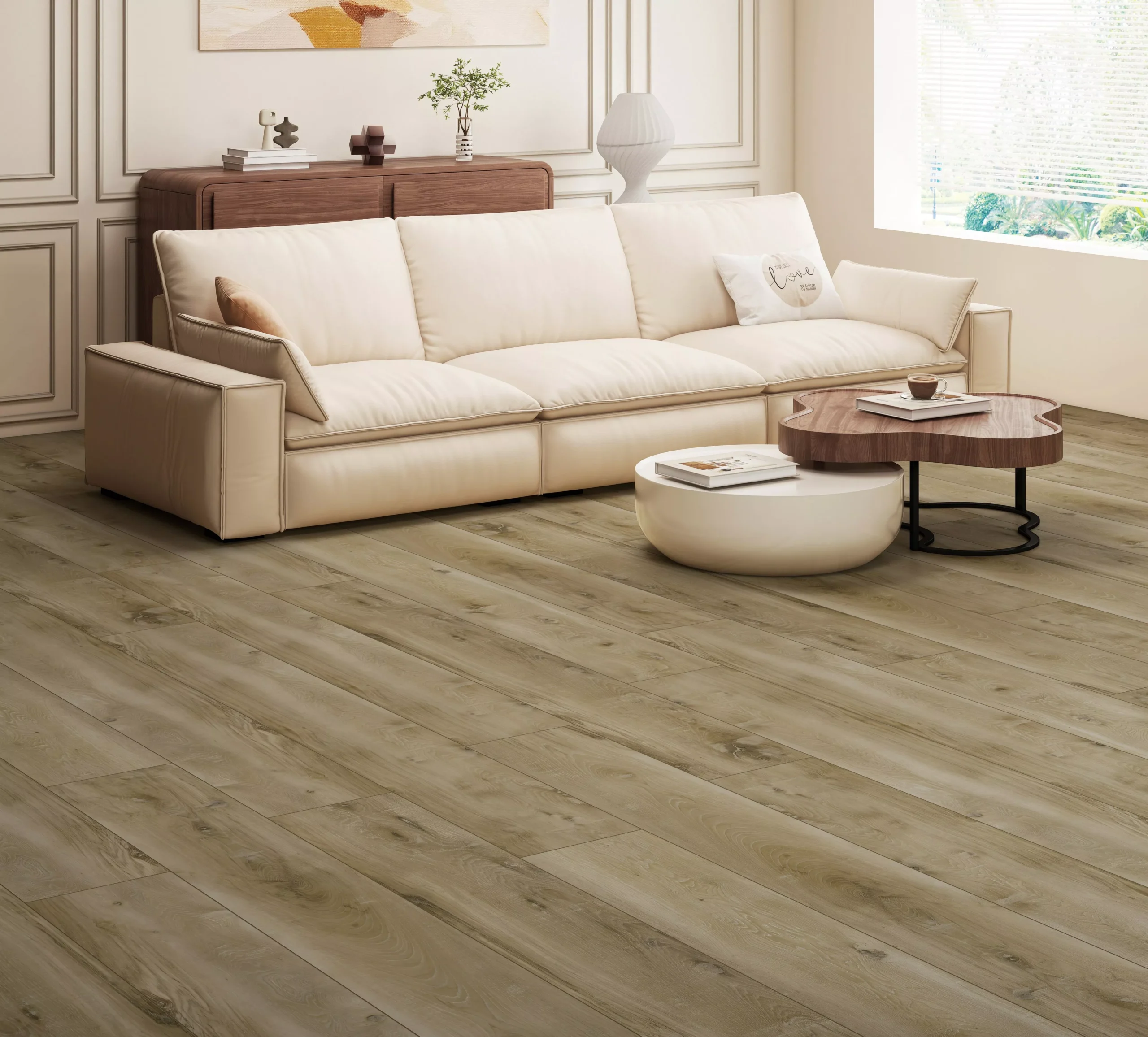

NuCore Delray Dunes Luxury Vinyl Plank Flooring
NuCore Delray Dunes brings the timeless warmth of coastal oak into your home with commercial-grade waterproof construction. We engineered this luxury vinyl plank with a realistic wood grain emboss that captures every knot and character line of authentic hardwood.
Our Delray Dunes features a factory-attached 1.5mm underlayment for superior sound reduction and cushioned comfort underfoot. The rigid core construction resists denting from furniture and high-traffic wear while remaining 100% waterproof for kitchens, bathrooms, and basements.
Installation is fast and straightforward with our EdgeLock™ click system that requires no glue or nails. Each plank locks securely in place, creating a floating floor that expands and contracts naturally with seasonal temperature changes.
Delray Dunes specifications
Waterproof Core Technology
The NuCore Delray Dunes plank is built on our proprietary rigid core platform that blocks 100% of moisture penetration. Unlike laminate or engineered hardwood, our vinyl composite core will not swell, warp, or delaminate when exposed to standing water.
We formulated the core with limestone powder and stabilizers that maintain dimensional stability across temperature ranges from 50°F to 100°F. This makes Delray Dunes ideal for basement installations, rental properties, and homes in humid climates where traditional wood flooring fails. The waterproof barrier extends through the entire plank thickness, protecting your subfloor even if surface water seeps between seams.
Installation Requirements and Subfloor Prep
NuCore Delray Dunes installs as a floating floor over most existing hard surfaces including concrete, tile, sheet vinyl, and existing wood floors. We recommend a flat subfloor with no more than 3/16″ variation over 10 feet for optimal performance.

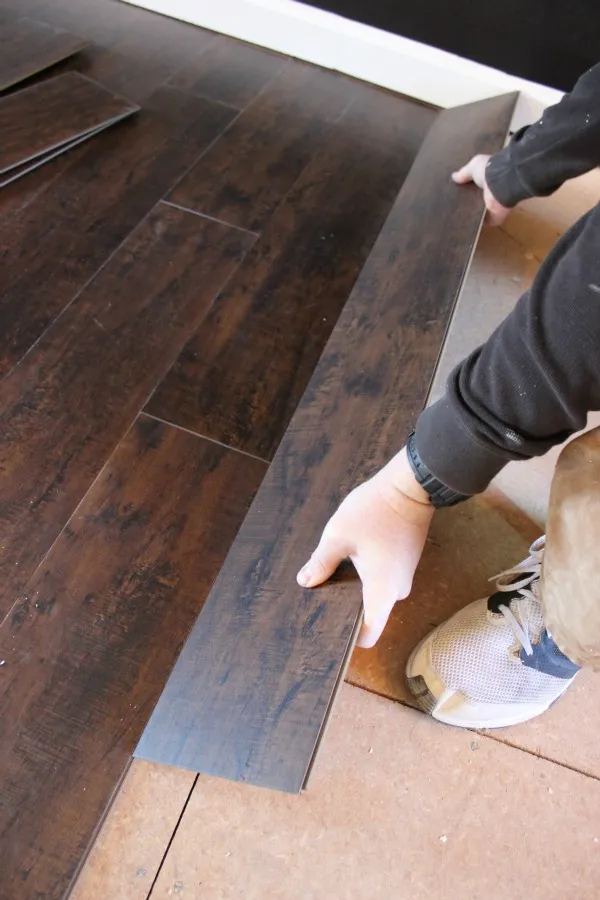

Before installation, allow planks to acclimate in the installation room for 48 hours at temperatures between 65°F and 85°F. Our EdgeLock™ system angles and clicks together without adhesive, so you can walk on the floor immediately after completing each row.
Surface Texture and Visual Design
Our design team captured authentic oak character in the Delray Dunes emboss with hand-scraped edges and wire-brushed grain patterns. The light neutral tone features subtle color variation between planks that mimics natural hardwood without obvious pattern repetition.
We applied a low-gloss protective finish that resists scuffs and scratches while maintaining the natural matte appearance of real wood. The 20 mil wear layer provides commercial-grade surface protection rated for wheeled office chairs and pet claws. Each plank measures 7.25 inches wide by 48 inches long, offering generous coverage with fewer seams compared to narrow-width vinyl planks.
Complete Your Space with NuCore Waterproof Flooring
Rated 4.8 by verified buyers
NuCore Delray Dunes Product Questions
The total thickness of NuCore Delray Dunes is 6.5mm including the factory-attached 1.5mm underlayment pad. The rigid vinyl core itself measures 5mm thick with a 20 mil wear layer on top.
This profile allows installation over most existing floors while maintaining low door clearances. The attached underlayment eliminates the need to purchase and roll out separate padding, saving installation time and cost.
Yes, you can install NuCore Delray Dunes over existing ceramic or porcelain tile as long as the surface is level within 3/16" over 10 feet. Fill any deep grout lines that exceed 1/8" depth with floor patch compound to prevent the click-lock seams from flexing.
We recommend thoroughly cleaning the tile to remove all wax, oil, or soap residue before installation. The floor will float over the tile without bonding, so proper expansion gaps around the perimeter are essential.
The rigid core construction in Delray Dunes resists denting significantly better than standard flexible vinyl plank flooring. We recommend placing felt pads or furniture coasters under all chair legs, table legs, and appliances to distribute weight and prevent surface impressions.
Refrigerators, washing machines, and other appliances can rest directly on the floor, but avoid dragging them during repositioning. Use appliance sliders or lift completely when moving heavy items to protect the wear layer from scuffs.
Leave a minimum 1/4" expansion gap around all walls, doorways, cabinets, and fixed objects when installing NuCore Delray Dunes. This allows the floating floor to expand and contract naturally with temperature and humidity changes throughout the year.
Use the included spacers during installation to maintain consistent gaps, then cover them with quarter-round molding or baseboard trim. Do not attach trim directly through the planks into the subfloor, as this will restrict necessary movement.
NuCore Delray Dunes carries a 10-year light commercial warranty covering office spaces, boutiques, and low-traffic retail environments. The 20 mil wear layer provides commercial-grade surface protection against scuffs, scratches, and rolling chair traffic.

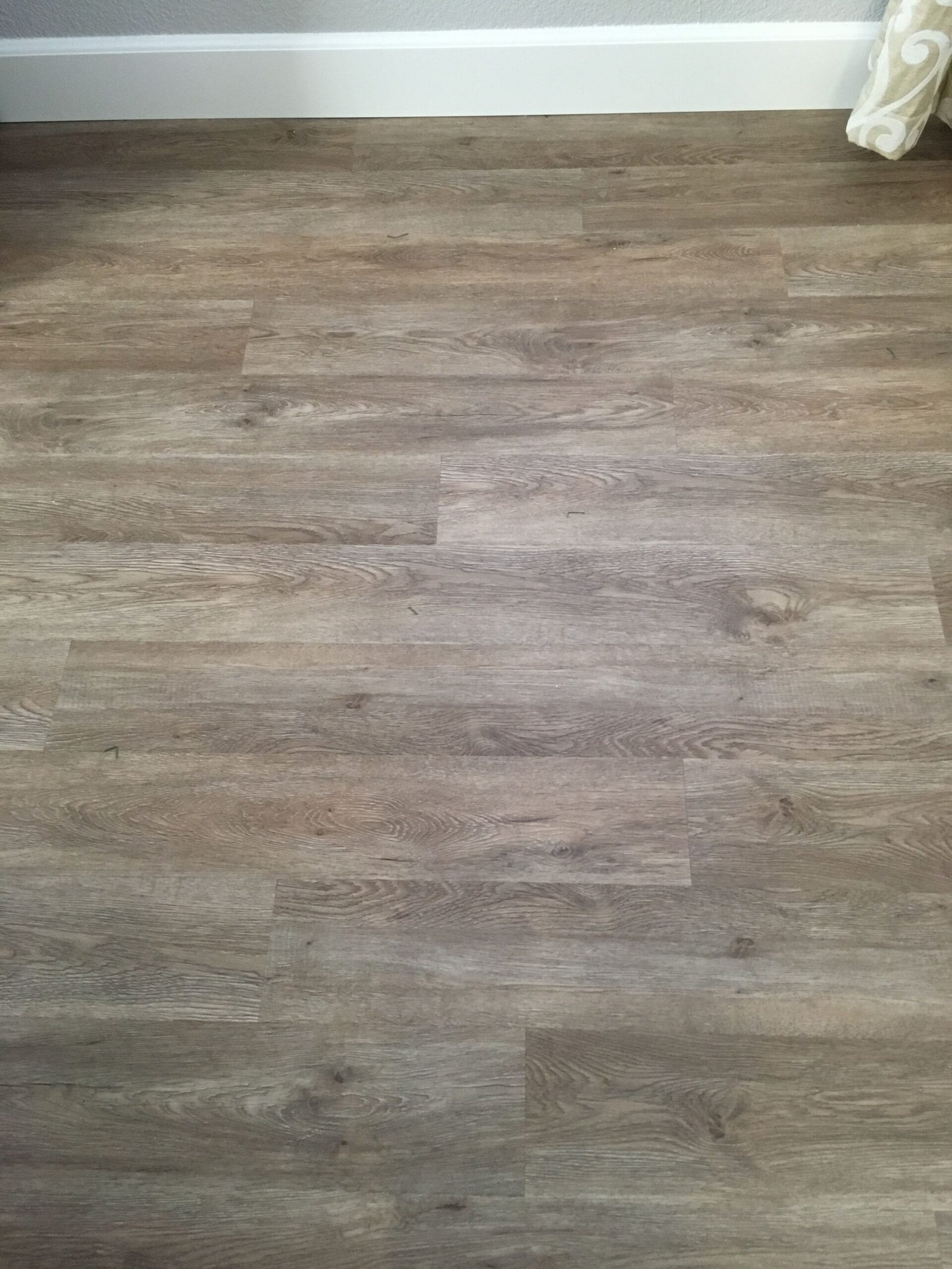

For high-traffic commercial applications like restaurants or busy storefronts, we recommend our NuCore Stone Polymer Collection which features enhanced rigidity and a thicker wear layer. Residential installations receive our lifetime warranty with no time limit.
Individual NuCore Delray Dunes planks can be replaced without removing the entire floor by carefully disengaging the click-lock connections. Start from the nearest wall or end of the room and work backward to the damaged plank, then reverse the process with the replacement.
For planks located in the middle of large rooms, professional installers can use a circular saw to cut out the damaged section and glue in a replacement piece. We recommend ordering extra boxes during initial purchase to ensure color lot matching for future repairs.
The light neutral tone of NuCore Delray Dunes actually hides dust and light debris better than very dark or very light flooring extremes. The subtle color variation and hand-scraped texture camouflage everyday dirt between cleanings.
Regular sweeping or vacuuming followed by damp mopping keeps the floor looking fresh. The low-gloss finish minimizes the appearance of footprints and smudges compared to high-gloss vinyl products that show every mark.
